By default, all 64-bit Windows versions prevent the installation of devices drivers that are not signed with a valid digital signature. Unsigned drivers are blocked by the operating system. A digital signature ensures that the driver has been released by a trusted developer or vendor, and its code hasn’t been modified.
There are several ways to disable driver signature verification for the unsigned drivers in Windows (using a GPO, a test boot mode, etc). Today we’ll show how to sign any unsigned driver for Windows x64 (the guide is applicable for Windows 11, 10, 8.1, and 7).
Suppose you have a certain unsigned device driver (without digital signature) for Windows 10 x64. In this example, it is the driver for a quite old graphics card. The archive with drivers for your Windows version has been downloaded from the vendor’s website (I was able to find the video driver version only for Windows Vista x64) and its contents have been extracted to the c:\tools\drv1\. Let’s try to install the driver by adding it to the Windows driver store with a built-in pnputil tool:
Pnputil –a c:\tools\drv1\xg20gr.inf

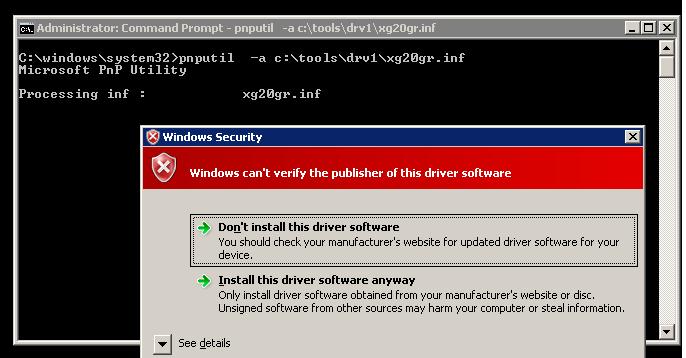

During driver installation, Windows 7 displays a warning that the operating system can’t verify the digital signature of this driver:
Windows can’t verify the publisher of this driver software.

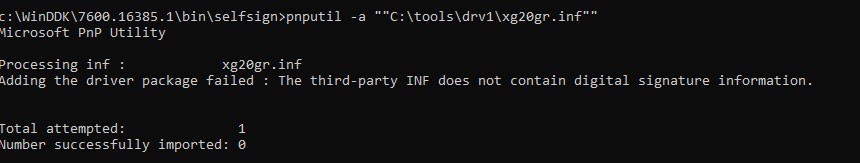

In Windows 10 (21H2) this warning doesn’t appear, but an error appears in the console:
Processing inf: xg20gr.inf Adding the driver package failed: The third-party INF does not contain digital signature information.

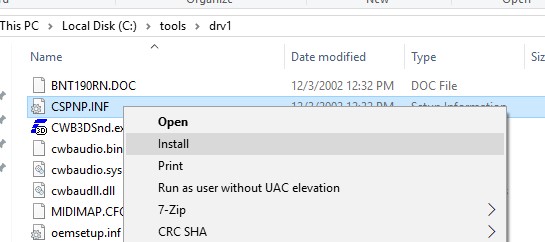

If you right-click on the inf driver file and select Install when installing a driver from File Explorer, you receive an error:

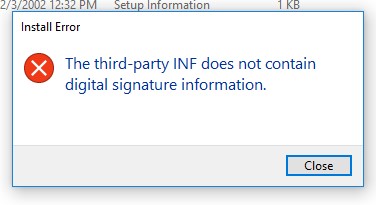

The third-party INF does not contain digital signature information.
Let’s try to sign this driver with a self-signed certificate.

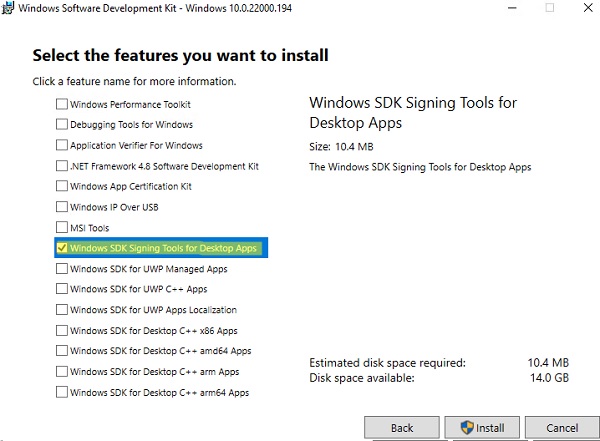

To generate a signature and sign the driver, you need to download and install the following Windows application development tools:
- Windows SDK (Software Development Kit) or Microsoft Visual Studio 2005+ for your Windows version. Install the Windows SDK Signing tools for Desktop package which contains the
signtool.exe;
- Windows Driver Kit (WDK) — https://docs.microsoft.com/en-us/windows-hardware/drivers/download-the-wdk
Create a Self-Signed Driver Certificate
Create a C:\DriverCert folder at the root of the system drive.

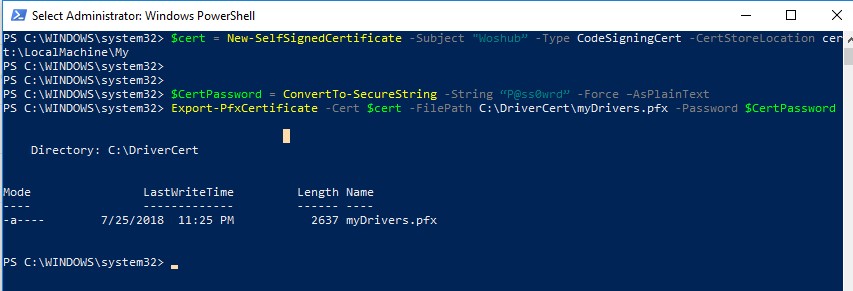

You can use the New-SelfSifgnedCertificate PowerShell cmdlet to create a code signing certificate. In this example, we will create a self-signed certificate with a validity period of 3 years.
$todaydate = Get-Date
$add3year = $todaydate.AddYears(3)
$cert = New-SelfSignedCertificate -Subject "WOSHUB” -Type CodeSigningCert -CertStoreLocation cert:\LocalMachine\My -notafter $add3year
Then you need to export this certificate to a pfx file with a password:
$CertPassword = ConvertTo-SecureString -String “P@ss0wrd” -Force –AsPlainText
Export-PfxCertificate -Cert $cert -FilePath C:\DriverCert\myDrivers.pfx -Password $CertPassword
Since the certificate we created is self-signed, Windows doesn’t trust it by default. When you check the certificate store with the Sigcheck utility, this certificate will be displayed as untrusted, because it is not listed in the list of Microsoft Trusted Root Certificates (this list needs to be updated periodically).
Now you need to add the certificate to the Trusted Root store and to the Trusted Publisher certificates:
$certFile = Export-Certificate -Cert $cert -FilePath C:\DriverCert\drivecert.cer
Import-Certificate -CertStoreLocation Cert:\LocalMachine\AuthRoot -FilePath $certFile.FullName
Import-Certificate -CertStoreLocation Cert:\LocalMachine\TrustedPublisher -FilePath $certFile.FullName
In previous versions of Windows, you must use the makecert.exe tool from the Windows Software Development Kit (SDK) to generate self-signed certificates. In this case, the commands to create a certificate will look like this:
cd “C:\Program Files (x86)\Microsoft SDKs\Windows\v7.1\bin”
Create a self-signed certificate and private key, that is issued, for example, for the company WinOSHub:
makecert -r -sv C:\DriverCert\myDrivers.pvk -n CN="WinOSHub" C:\DriverCert\myDrivers.cer

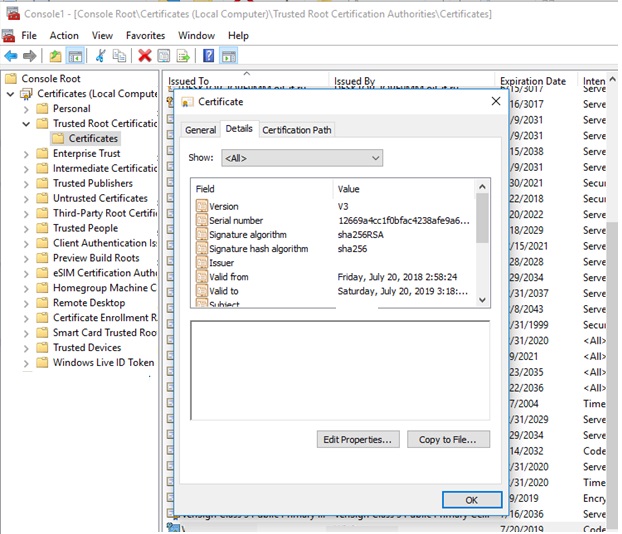

Open the machine’s local certificate management snap-in (certlm.msc) and verify that your certificate is in the Trusted Publishers and Trusted Root Certification Authorities.
Creating a Catalog File (CAT) for Signing a Driver Package
Create the directory C:\DriverCert\xg20 and copy all files from the folder into which the driver from the archive has been originally extracted (c:\tools\drv1\). Make sure that there are files with the extensions .sys and .inf among these files (in our case, they are xg20grp.sys and xg20gr.inf).
md C:\DriverCert\xg
xcopy c:\tools\drv1\ C:\DriverCert\xg /i /c /k /e /r /y
Go to the directory:
cd “C:\Program Files (x86)\Windows Kits\10\bin\10.0.22000.0\x86”

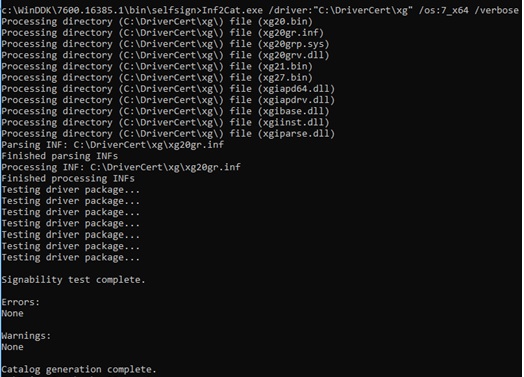

Generate a CAT file (contains information about all the files in the driver package) on the base of the INF file. The inf2cat.exe tool (from the Windows Driver Kit, WDK) allows you to generate a CAT file for your platform:
inf2cat.exe /driver:"C:\DriverCert\xg20" /os:7_X64 /verbose
To make sure that the procedure was correct, check that the file C:\DriverCert\xg\xg20gr.cat has appeared in the target directory, and there are messages in the log:
Signability test complete.
and
Catalog generation complete.

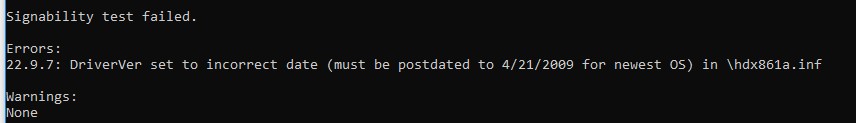

Signability test failed. Errors: 22.9.7: DriverVer set to incorrect date (must be postdated to 4/21/2009 for newest OS) in \hdx861a.inf

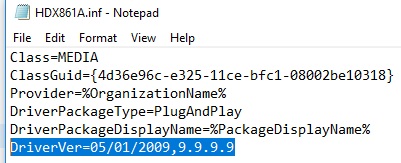

To fix the error, find the line with DriverVer = in the [Version] section and replace it with:
DriverVer=05/01/2009,9.9.9.9
If you get an error Missing AMD64 CatalogFile entry (for x64) or Missing 32-bit CatalogFile entry, then add the line CatalogFile=xg20gr.cat to the [Version] section of the .inf file.
Signing the Driver Package with a Self-Signed Certificate
Go to the following folder:
cd "C:\Program Files (x86)\Windows Kits\10\bin\10.0.22000.0\x64"
Sign the driver package (set of files) with the certificate you have created earlier using Verisign as a timestamp service. The following command will sign the CAT file with a digital signature using a certificate stored in a password-protected .pfx file:
signtool sign /f C:\DriverCert\myDrivers.pfx /p P@ss0wrd /t http://timestamp.verisign.com/scripts/timstamp.dll /v C:\DriverCert\xg20\xg20gr.cat
On modern versions of Windows 10 and Windows 11, running this command will result in an error:
SignTool Error: No file digest algorithm specified. Please specify the digest algorithm with the /fd flag. Using /fd SHA256 is recommended and more secure than SHA1. Calling signtool with /fd sha1 is equivalent to the previous behavior. In order to select the hash algorithm used in the signing certificate's signature, use the /fd certHash option.
You need to use another command:
signtool sign /tr http://timestamp.digicert.com /td SHA256 /v /f C:\DriverCert\myDrivers.pfx /p P@ss0wrd "C:\DriverCert\xg\xg20gr.cat"
SignTool Error: An unexpected internal error has occurred, or Error information: SignerTimeStamp() failed. (-2147012865/0x80072eff), try a different timestamp server URL. Try any of the list:http://timestamp.comodoca.com/authenticode http://timestamp.globalsign.com/scripts/timstamp.dll http://timestamp.verisign.com/scripts/timstamp.dll http://tsa.starfieldtech.com http://www.startssl.com/timestamp

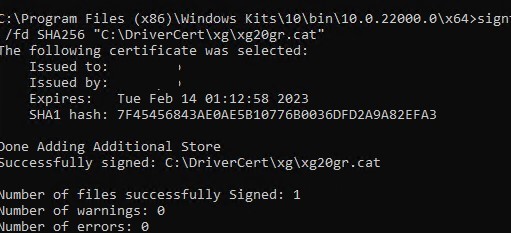

If the CAT file is signed successfully, the following message should appear:
Successfully signed: C:\DriverCert\xg\xg20gr.cat Number of files successfully Signed: 1

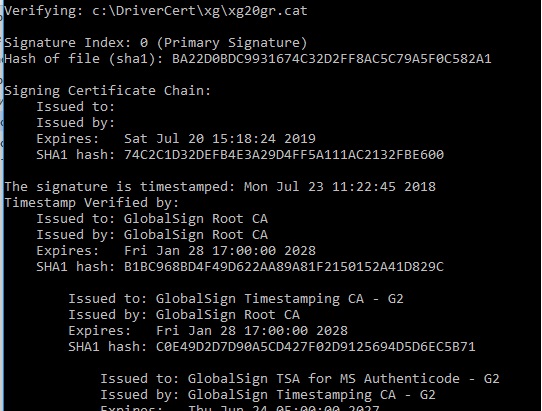

The driver’s digital signature is contained in the .cat file referenced in the .inf file. You can check the digital signature of the driver in the cat file using the following command:
SignTool verify /v /pa c:\DriverCert\xg\xg20gr.cat

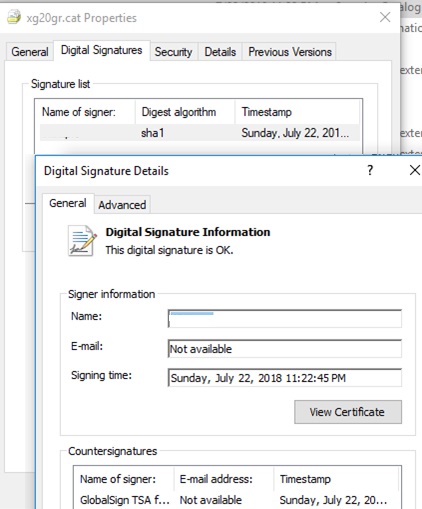

You can also see information about the certificate in the properties of the CAT file on the Digital Signatures tab.
If the certificate is not trusted (or has not been added to the Trusted Root Certificate Store), then an error will appear when running the SignTool verify command:
SignTool Error: A certificate chain processed, but terminated in a root certificate which is not trusted by the trust provider.
Installing a Self-Signed Driver on Windows

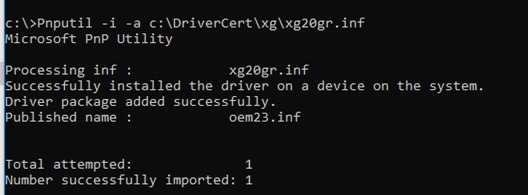

Try to install the driver we have signed again using the command:
Pnputil –i –a C:\DriverCert\xg20\xg20gr.inf
Now you won’t see the warning about the missing digital signature of the driver.
Successfully installed the driver on a device on the system.
Driver package added successfully.

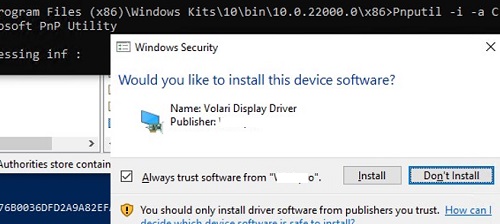

The following warning appears in Windows 10 and 11:
Would you like to install this device software?
Click “Install” to install the driver package on Windows.
If for some reason the driver is not installed, a detailed driver installation log is contained in the file C:\Windows\inf\setupapi.dev.log. This log file allows you to get more information about the driver installation errors. In most cases, there is a “Driver package failed signature validation” error. Most likely this means that the driver’s certificate is not added to the trusted certificates store.

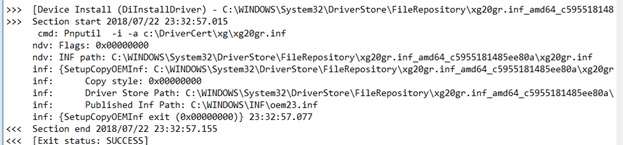

If the driver installation was successful, the setupapi.dev.log file should contain the following lines:
>>>? [Device Install (DiInstallDriver) - C:\WINDOWS\System32\DriverStore\FileRepository\xg20gr.inf_amd64_c5955181214aa12b\xg20gr.inf]
>>>? Section start 2018/07/22 23:32:57.015
cmd: Pnputil? -i -a c:\DriverCert\xg\xg20gr.inf
ndv: Flags: 0x00000000
ndv: INF path: C:\WINDOWS\System32\DriverStore\FileRepository\xg20gr.inf_amd64_c5955181214aa12b\xg20gr.inf
inf: {SetupCopyOEMInf: C:\WINDOWS\System32\DriverStore\FileRepository\xg20gr.inf_amd64_c5955181214aa12b\xg20gr.inf} 13:23:37.046
inf:????? Copy style: 0x00000000
inf:????? Driver Store Path: C:\WINDOWS\System32\DriverStore\FileRepository\xg20gr.inf_amd64_c5955181214aa12b\xg20gr.inf
inf:????? Published Inf Path: C:\WINDOWS\INF\oem23.inf
inf: {SetupCopyOEMInf exit (0x00000000)} 13:23:37.077
<<<? Section end 2018/07/22 13:23:37.155
<<<? [Exit status: SUCCESS]User-Mode and Kernel-Mode Drivers in Windows
Let me remind you that in Windows the driver can be executed in a kernel-mode or in a user mode. Kernel-mode drivers signed this way won’t load when Windows boots on the UEFI device with Secure Boot enabled with the error:

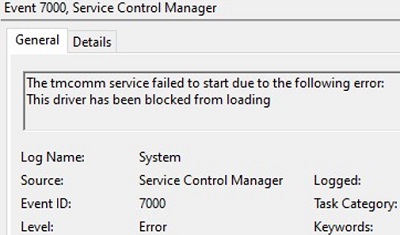

Event ID: 7000 ERROR_DRIVER_BLOCKED 1275 (0x4FB) This driver has been blocked from loading.
You can check if Secure Boot mode is enabled using the PowerShell command:
Confirm-SecureBootUEFI
All kernel-mode drivers loaded with SecureBoot enabled must be signed during the Microsoft certification process (WHQL – Windows Hardware Quality Lab). The reason is that when the kernel is loaded, UEFI cannot verify the certificates in the Windows local machine certificate store.
SignTool Error: Signing Cert does not chain to a Microsoft Code Verification Root.
Microsoft requires mandatory third-party driver certification under the Windows Hardware Compatibility Program starting with Windows 10 1607.
Self-signed user-mode drivers (usually printers, scanners, plotters, etc.) will work even with SecureBoot enabled.
For kernel-mode drivers, you will have to disable digital signature verification and boot Windows in a test mode with the bcdedit.exe commands:
bcdedit.exe /set /nointegritychecks on
bcdedit.exe /set testsigning ON
