Let’s look at two ways to authenticate to a proxy server: you can use Windows SSO authentication or specify user credentials for authentication manually.

If you are authorized on your computer under a domain account, and your proxy server supports Active Directory Kerberos, or NTLM authentication (if you have not disabled it yet), then you can use the current user credentials to authenticate on the proxy server (you do not need to re-enter your username and password):

$Wcl = new-object System.Net.WebClient
$Wcl.Headers.Add(“user-agent”, “PowerShell Script”)
$Wcl.Proxy.Credentials = [System.Net.CredentialCache]::DefaultNetworkCredentials

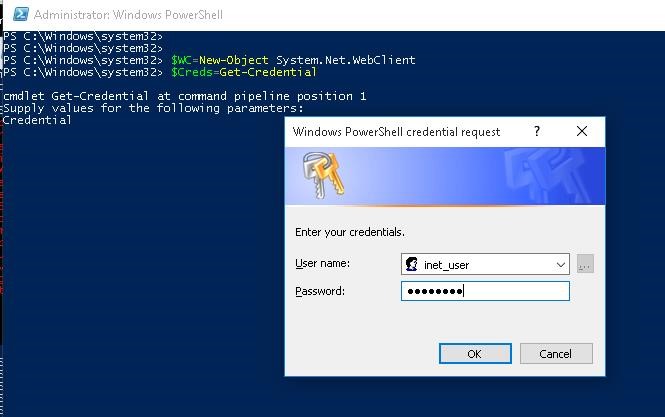

If you need to manually authenticate on the proxy server manually, run the following commands and specify the username and password in the Windows Security credential request window.

$Wcl=New-Object System.Net.WebClient
$Creds=Get-Credential
$Wcl.Proxy.Credentials=$Creds

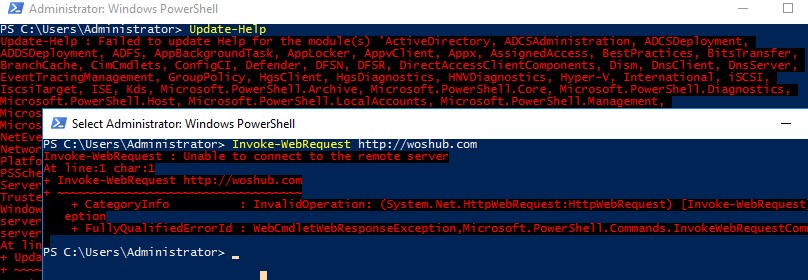

Now you can try to access an external website or update the help with the Update-Help command.

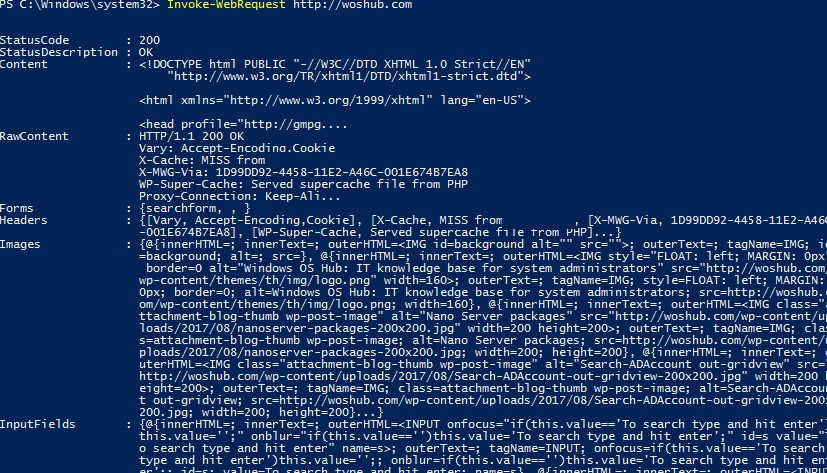

Or, if you have configured a proxy connection in a PowerShell session, the command should return the external IP address of your proxy server:

(Invoke-WebRequest -uri "http://ifconfig.me/ip").Content

As you can see, the Invoke-Web Request cmdlet returned data from the external site webpage!

The above method allows you to configure proxy server settings and authenticate in classic Windows PowerShell 5.1 (How to check the PowerShell version installed?).

Configuring Proxy Connections for PowerShell Core

In new versions of PowerShell Core (6.x, 7.x), the System.Net.HttpClient class is used instead of the System.Net.WebRequest class to perform web requests in the Invoke-WebRequest, Find-Module, Install-Module, etc. cmdlets.

Accordingly, to set proxy server settings in PowerShell Core, you need to use the command:

[System.Net.Http.HttpClient]::DefaultProxy = New-Object System.Net.WebProxy('http://your-proxy:3128')

To authenticate on the proxy under the current Windows user:

[System.Net.Http.HttpClient]::DefaultProxy.Credentials = [System.Net.CredentialCache]::DefaultCredentials

To interactively request user credentials for proxy authentication:

[System.Net.Http.HttpClient]::DefaultProxy.Credentials = Get-Credential

PowerShell Core also supports special Windows environment variables you can use to enable proxy settings:

• HTTP_PROXY – proxy for HTTP requests
• HTTPS_PROXY — proxy for HTTPS requests
• ALL_PROXY – proxy for both HTTP and HTTPS
• NO_PROXY – proxy exclusion address list

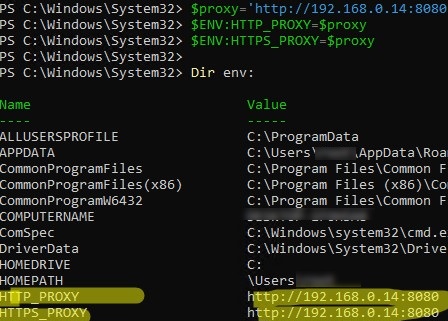

You can set environment variables with the following PowerShell commands:

$proxy='http://192.168.1.100:8080'
$ENV:HTTP_PROXY=$proxy
$ENV:HTTPS_PROXY=$proxy

Check that the proxy environment variables are set:

Dir env:

In PowerShell Core on Linux, you can export system proxy settings from environment variables using:

export HTTP_PROXY=http://192.168.1.100:3128
export HTTPS_PROXY=http://192.168.1.100:3128

Apply Proxy Server Settings with PowerShell Profile File

You can create a PowerShell profile file to automatically import proxy settings when PowerShell starts.

To do this, run the command that will create the PowerShell profile file (C:\Users\username\Documents\WindowsPowerShell\Microsoft.PowerShell_profile.ps1):

notepad $PROFILE (or notepad $PROFILE.AllUsersCurrentHost –if you need to apply a PowerShell profile to all users of the computer).

Copy your PowerShell code into the notepad window. For example, you are using the Proxy Auto-Configuration (PAC) files to automatically configure proxy server settings on user computers. You can specify the URL address of the PAC file and authenticate on the proxy server under the current user with the following PowerShell profile script.

# Force PowerShell to use TLS 1.2 for connections
[Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12
[system.net.webrequest]::DefaultWebProxy = new-object system.net.webproxy('http://10.1.15.5:80')
# If you need to import proxy settings from Internet Explorer, you can replace the previous line with the: "netsh winhttp import proxy source=ie"
[system.net.webrequest]::DefaultWebProxy.credentials = [System.Net.CredentialCache]::DefaultNetworkCredentials
# You can request user credentials:
# System.Net.WebRequest]::DefaultWebProxy.Credentials = Get-Credential
# Also, you can get the user password from a saved XML file (see the article “Using saved credentials in PowerShell scripts”):
# System.Net.WebRequest]::DefaultWebProxy= Import-Clixml -Path C:\PS\user_creds.xml
[system.net.webrequest]::DefaultWebProxy.BypassProxyOnLocal = $true

Save the Microsoft.PowerShell_profile.ps1 file and restart the PowerShell console. Now, when you open a new PowerShell session, the code in the profile file is executed and the proxy settings are imported into your session.

Show Current Proxy Server Settings with PowerShell

You can get the current proxy settings in Windows from the registry with the PowerShell command:

Get-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' | Select-Object ProxyServer, ProxyEnable

In my example, the address and port of the proxy server are: 192.168.1.100:3128
Proxy server enabled: ProxyEnable =1

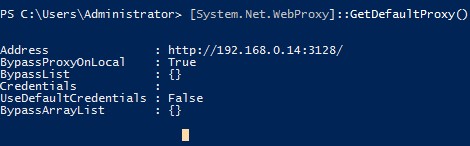

You can also get WebProxy settings like this:

[System.Net.WebProxy]::GetDefaultProxy()

If necessary, you can enable the use of proxy with the following command:

Set-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' ProxyEnable -value 1

To disable proxy:
Set-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' ProxyEnable -value 0

How to Change Proxy Settings in Windows with PowerShell?

You can set proxy settings using PowerShell. For example, the following PowerShell function allows you to change proxy settings, but first, it checks the availability of the proxy server and the port response on it using the Test-NetConnection cmdlet

function Set-Proxy ( $server,$port)
{
If ((Test-NetConnection -ComputerName $server -Port $port).TcpTestSucceeded) {
Set-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' -name ProxyServer -Value "$($server):$($port)"
Set-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' -name ProxyEnable -Value 1
}
Else {
Write-Error -Message "Invalid proxy server address or port:? $($server):$($port)"
}
}

Set-Proxy 192.168.1.100 3128

You can add additional addresses to the proxy exclusion list:

$ProxyExceptionList = ";*.woshub.com;*.contoso.com"
$ProxyProperty = Get-ItemProperty "HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings"
If ($ProxyProperty.ProxyOverride) {
$OldValue = $ProxyProperty.ProxyOverride
$NewValue = $OldValue+$ProxyExceptionList
$ProxyProperty | Set-ItemProperty -Name ProxyOverride -Value $NewValue
} else {
Write-Warning "List of proxy overrides is empty!"
}

Additionally, you can save the login and password? for authentication on the proxy server in the registry:

Set-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' -name ProxyUser -Value "proxy_username"
Set-ItemProperty -Path 'HKCU:\Software\Microsoft\Windows\CurrentVersion\Internet Settings' -name ProxyPass -Value "proxy_password"

Note that older builds of Windows 10, Windows Server 2016, and older versions of Windows use the outdated and insecure TLS 1.0 protocol by default for PowerShell connections. This is why you may get the following error when trying to search for a module in PSGallery:

WARNING: Unable to resolve package source 'https://www.powershellgallery.com/api/v2'.

To use TLS 1.2 in PowerShell connections to endpoints, run the command

[Net.ServicePointManager]::SecurityProtocol = [Net.SecurityProtocolType]::Tls12
