UserAccountControl is one of the most important attributes of the user and computer objects in Active Directory. This attribute determines the state of the account in the AD domain: whether the account is active or locked out, whether the option of password change at the next logon is enabled, whether users can change their passwords, etc. However, not all administrators are fully aware of how the UserAccountControl attribute works and what it is used for in AD

UserAccountControl Attribute/Flag in Active Directory

Open the properties of any AD account in the Active Directory Users and Computers (ADUC, dsa.msc) console and go to the Account tab. Please, pay attention to the group of user attributes in the Account Options section. Here you can see the following options:

• User must change password at next logon;
• User cannot change password;
• Password never expires;
  By default, the domain password policy in AD requires the user to change their password periodically.
• Store password using reversible encryption (not safe);
• Account is disabled;
• Smart card is required for interactive logon;
• Account is sensitive and cannot be delegated;
• Use Kerberos DES encryption types for this account;
• This account supports Kerberos AES 128/256-bit encryption;
• Do not require Kerberos Pre-authentication.

Each of these user account attributes is essentially a bit value (flag) that can be either 1 (True) or 0 (False). However, these values are not stored as separate AD attributes, instead the UserAccountControl attribute is used.

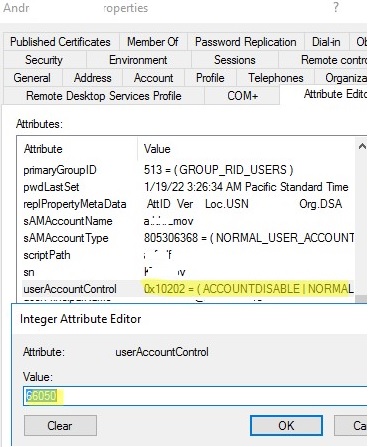

The total value of all options specified above is stored in the value of UserAccountControl attribute. Instead of storing all these options in different user attributes, a single Active Directory attribute is used. The UserAccountControl is a bitmask, each bit of which is a separate flag and has a value On (True) or Off (False). Depending on the enabled account options a user will have different UserAccountControl attribute values. You can see the current value of the attribute in the corresponding Attribute Editor tab or using the Get-ADUser cmdlet in PowerShell:

get-aduser jkelly -properties *|select name,UserAccountControl | ft

In this example, the value of the attribute is 0x10202 (decimal value is 66050). What do these numbers mean?

The table of available flags of AD accounts is given below. Each flag corresponds to a certain UserAccountControl bit, and UserAccountControl value equals the sum of all flags.

For example, there is a regular account for which the requirement to change the password is disabled. The userAccountControl value is calculated as follows:

NORMAL_ACCOUNT (512) + DONT_EXPIRE_PASSWORD (65536) = 66048

Accordingly, the value of userAccountControl from my example (66050) was obtained as follows:

NORMAL_ACCOUNT (512) + DONT_EXPIRE_PASSWORD (65536) + ACCOUNTDISABLE (2) = 66050

A disabled user account has 514 as a userAccountControl value:

(NORMAL_ACCOUNT (512)+ ACCOUNTDISABLE (2) = 514

Default UserAccountControl values for typical domain objects:

• A regular AD user: 0x200 (512);
• A domain controller: 0x82000 (532480);
• A workstation/server: 0x1000 (4096).

You can use LDAP filters to select objects from AD objects with a certain useraccountcontrol value. For example, to display all active (normal) accounts:

Get-ADUser -Properties * -ldapFilter "(useraccountcontrol=512)"

Display the list of all disabled user accounts:

Get-ADUser -Properties * -ldapFilter "(useraccountcontrol=514)"

The list of accounts with a non-expiring password option:

Get-ADUser -Properties * -ldapFilter "(useraccountcontrol=66048)"

You can sum the required bits from the table and select AD objects using the command:

$UserAccountControl_hex= 0x10000 + 0x0080 + 0x200000
Get-ADUser -Filter {UserAccountControl -band$UserAccountControl_hex}

Decoding UserAccountControl Values with PowerShell Script

To make it more convenient, I want to have a tool to automatically convert the value of UserAccountControl bitmask into a human-transparent form. Let’s try to write a simple PowerShell function that takes the decimal value of UserAccountControl attribute and returns the list of enabled account options. Since UserAccountControl is a bitmask, you can assign a text description to each bit.
