Most backup solutions for Windows use Volume Shadow Copy Service (VSS) to create backup copies of the application or service data. In some cases, the VSS service or one of its writers start to work incorrectly which results in failures during the backup. I have faced such an problem on Exchange, MSSQL and Hyper-V servers. To quickly recover VSS and its components, I use the following instruction.

To detect a failed VSS writer, let’s display the list of VSS writers registered in the system and their status using the vssadmin command.
vssadmin list writers

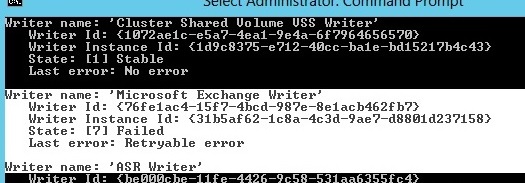

Find the components with the Failed state in the list. For the components working normally, the state looks as follows: State: [1] Stable.

Writer name: 'Microsoft Exchange Writer'
Writer Id: {53da1ac4-4bab-404a-0917-ae23f8aacfb7}
Writer Instance Id: {61b56ab0-9588-432f-ae7b-3233753ffa38}
State: [7] Failed
Last error: Retryable error

As you can see, in our case Microsoft Exchange Writer has failed (State: [8] Failed), so you won’t be able to complete the Exchange backup. Typically, to fix the state of this component, it’s enough to restart the server (which is not always possible for production reasons).

To repair the Exchange writer, try to restart the related service. (The table below shows the list of typical VSS Writers and the related Windows services.) Besides stopping the service, sometimes you will have to kill a hung service process manually.

Run the following command again:

vssadmin list writers

Check the status of the problem VSS writer. If it hasn’t changed to Stable state and the problem is not fixed, you can try to re-register the VSS components and libraries.

Go to this directory:

cd c:\windows\system32

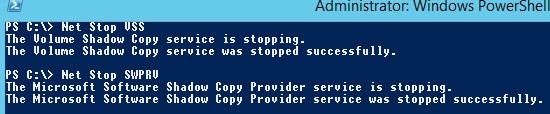

Stop the following services: Volume Shadow Copy and Microsoft Software Shadow Copy Provider.

Net Stop VSS
Net Stop SWPRV

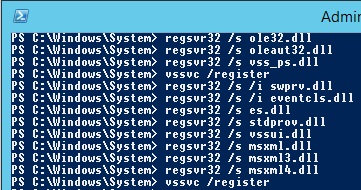

Re-register the VSS components:

regsvr32 /s ole32.dll
regsvr32 /s oleaut32.dll
regsvr32 /s vss_ps.dll
vssvc /register
regsvr32 /s /i swprv.dll
regsvr32 /s /i eventcls.dll
regsvr32 /s es.dll
regsvr32 /s stdprov.dll
regsvr32 /s vssui.dll
regsvr32 /s msxml.dll
regsvr32 /s msxml3.dll
regsvr32 /s msxml4.dll
vssvc /register

Start the previously stopped services:
Net Start SWPRV
Net Start VSS

Make sure that the error of the problem VSS writer has disappeared.

This method of restarting and re-registering of VSS components is effective both on Windows Server 2008 / 2012/ R2 and on Windows Server 2016.
