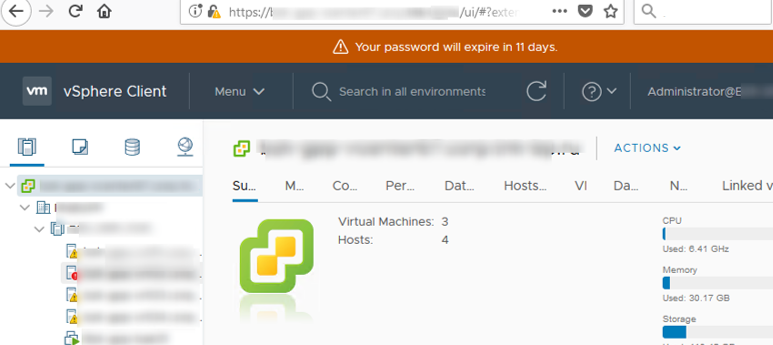

From time to time in the vSphere Client interface I come across the notification: Your password will expire in xx days. I decided to learn how to manage password policies in VMWare vSphere, how to change the time when a password expiry notification appears for local and domain vSphere users and set the password settings for some users to never expire. Here is what I have found.

Password & Lockout Policy on VMWare Single Sign On (SSO)

In my case, I decided to disable the password expiration for the local user [email protected] (since nobody works under this local account permanently, and the vSphere administrators authenticate under their Active Directory domain accounts).

By default, the SSO policy is applied for vSphere local users, which requires a user password to be changed every 90 days.

You can find the SSO password policy settings in the following section of the vSphere Client: Administration -> Single Sign On -> Configuration.

As you can see on the Password Policy tab, the following requirements are applied to the passwords of all local vCSA users:

• The minimum password length is 8 characters (maximum — 20 characters);
• A password expires in 90 days (maximum lifetime);
• The last 5 passwords are not allowed to be reused;
• Some password complexity restrictions.

Click Edit and change the policy settings. For example, you can change Maximum lifetime to 365 (it means that you have to change passwords once a year) or enter 0 here (meaning that the password is not expired).

Change Password Expiration Settings to Never Expire for Local VMWare vCSA Users

If you do not want to change your password policy for all vCenter users, you can change the password policy and the expiration settings for the specific user. For example, you want to set the password for the local backup_user to never expire. To do it, connect to your vCSA host using the SSH client.

You will need the dir-cli tool, which is located in /usr/lib/vmware-vmafd/bin/.

cd /usr/lib/vmware-vmafd/bin/

Check that the local user exists:

./dir-cli user find-by-name --account backup_user

Enter password for [email protected]:
Account: backup_user
UPN: [email protected]/

You can change the password for this user:

./dir-cli password reset --account backup_user --password OldBackupP@$$ --new NewBackupP@$$

Or you can set password to never expire:

./dir-cli user modify --account backup_user --password-never-expires

Enter password for administrat[email protected]:
Password set to never expire for [backup_user]

Root Password Expiration on vCenter VCSA

When you install the vCenter Server Appliance, the password lifetime for root user is set to 365 days (vCenter 6.5 or earlier) or 90 days (vSphere 6.7). So root is also subject to password expiration policy.

You can view the password policy settings in the vCSA Appliance Management (https://your_vcenter_name:5480/ui/access). Go to the Administration section and check the values in the “Password expiration settings” section.

• Password expires: Yes
• Password validity (days): 90
• Password expires on: Jun 13, 2020, 2:00:00 AM

You can change the password expiration settings for root or set it to never expire (if its value is 0).

Also you can check the root password expiration setting from your vCSA console:

chage -l root

Last password change : Mar 15, 2019
Password expires : Jun 20, 2019
Password inactive : never
Account expires : never
Minimum number of days between password change : 0
Maximum number of days between password change : 90
Number of days of warning before password expires : 7

Appliance (OS) root password is expired or is going to expire soon. Please change the root password before installing an update.

Permission Denied. Set the maximum number of days when the password will expire. Administrator configuration updated successfully.
